91-94 Ford Explorer Mid Travel Kit

The 91-94 Explorer Mid-Travel Suspension Kit provides 4 inches of lift and is the ideal starter performance mid-travel suspension upgrade for your 4WD Ford Explorer.

The Dana 35 TTB Beams are cut and turned to allow for proper camber alignment. Our 1 1/4″” heimed extended radius arms bring the vehicle’s caster back to where it should be and allows the wheel to travel on a greater arc which dramatically improves performance on and off road performance.

We also supply you with a pair of front Bilstein 5100 shocks and a set of front stainless brake lines.  33″ tires are ideal when keeping your stock fenders and bedsides. 35″ tires are possible when running fiberglass fenders.

Refundable $350 core charge for beams is included. Please contact us for more information on the core charge.

Specs

• Whee Travel: 12" in
• Ride height increase 4" in
• Recommended tire size: 33″  (35″ tire will require fiberglass)
• Fiberglass required: No
• Driveshaft modification required: No

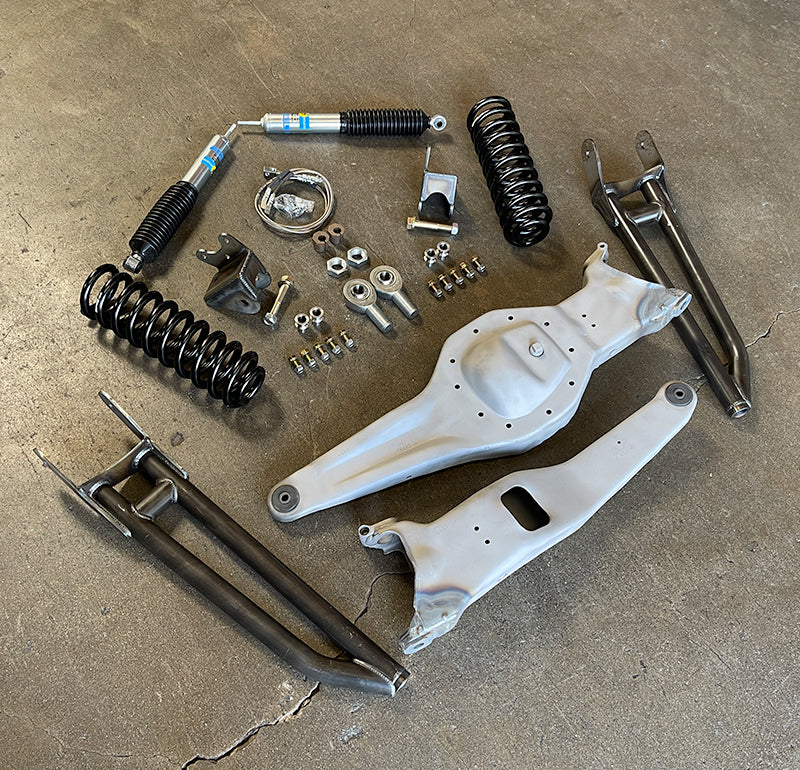

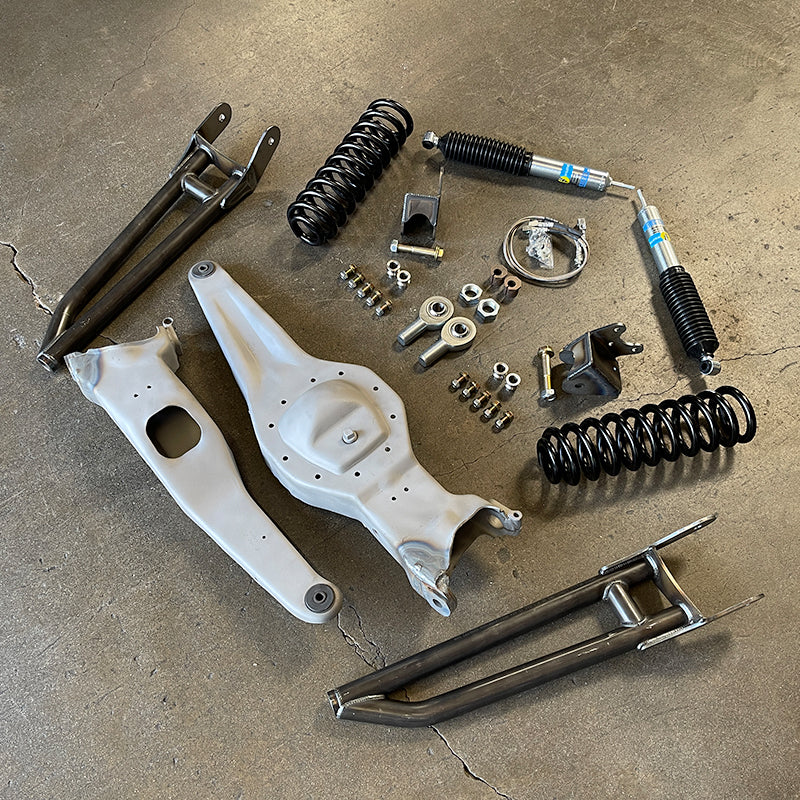

Kit Includes

• Cut N’ Turned Dana 35 TTBs
• 4″ Coils
• 1 1/4″ Heimed Extended Radius Arms with
• Radius Arm Pivot Boxes
• Grade 8 Hardware
• Front Extended Brake Lines
• Alignment Cams
• Bilstein 5100 shocks behind the coils
