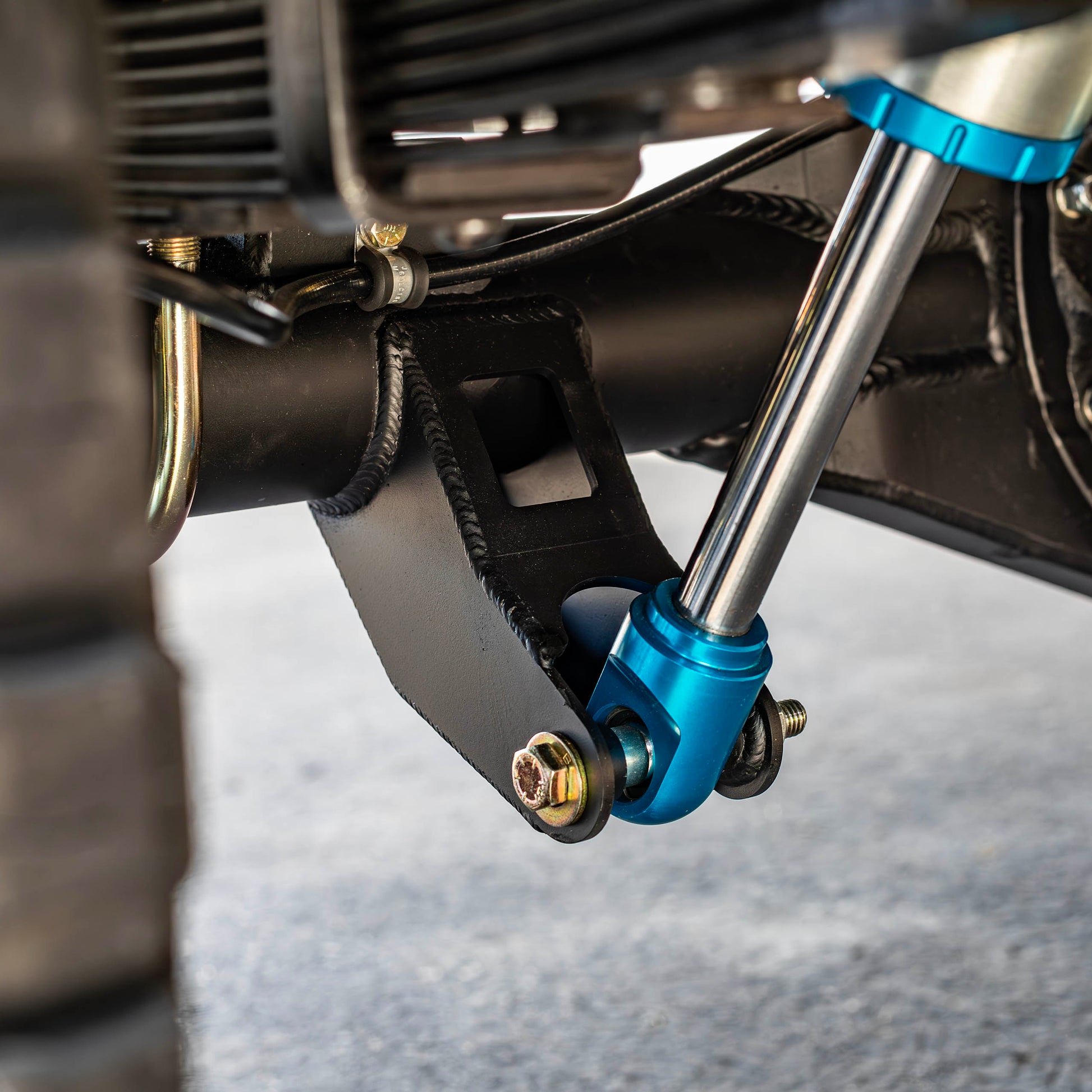

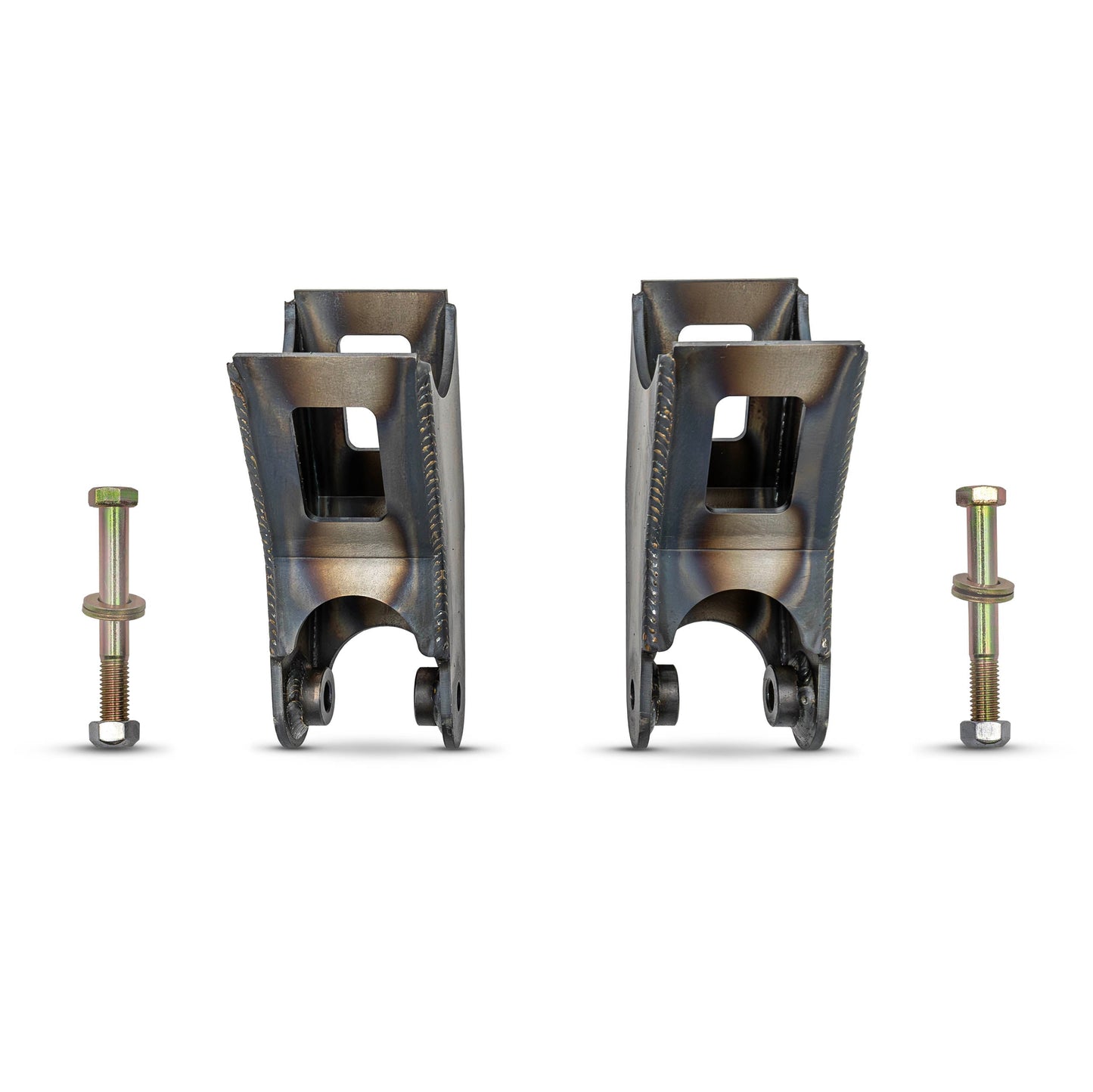

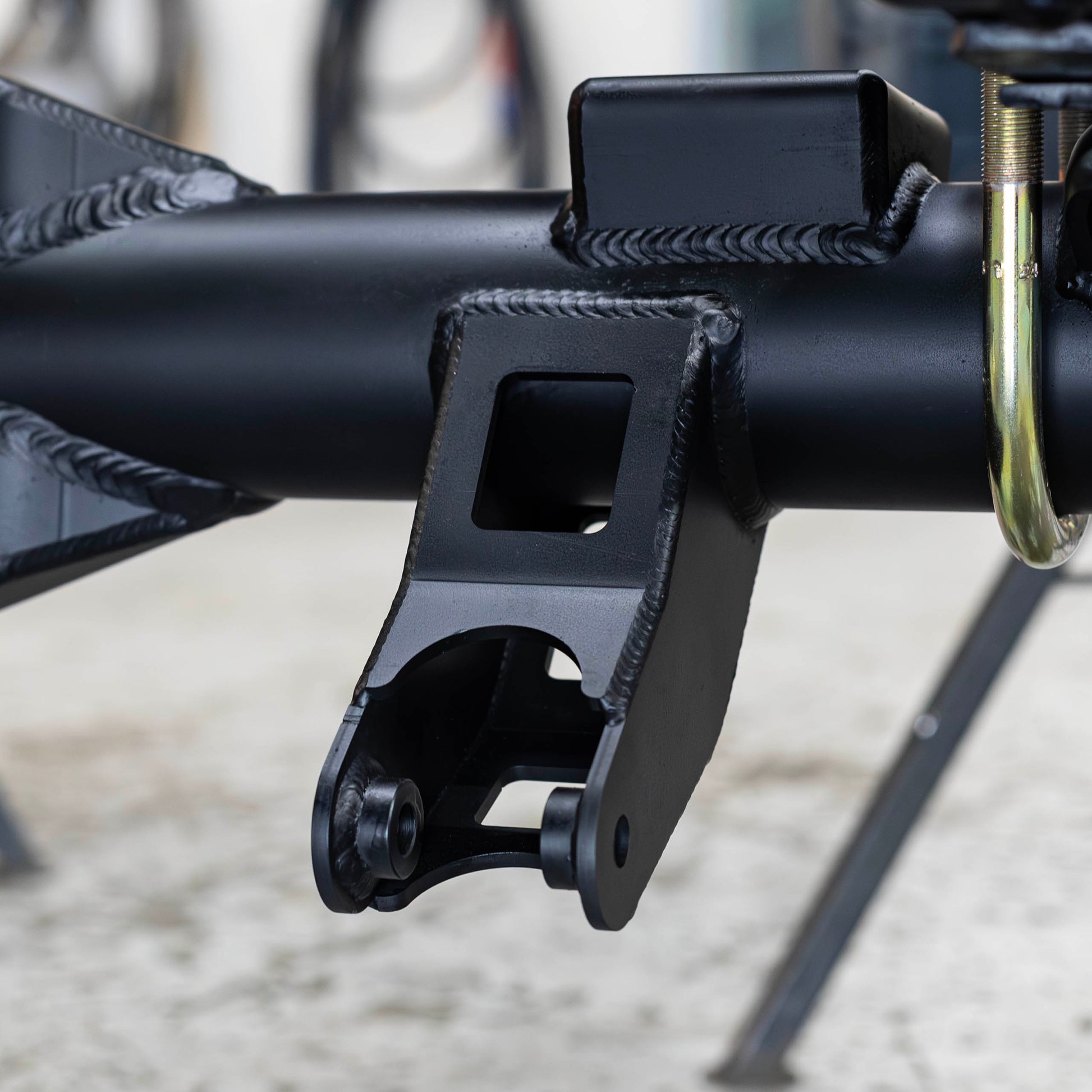

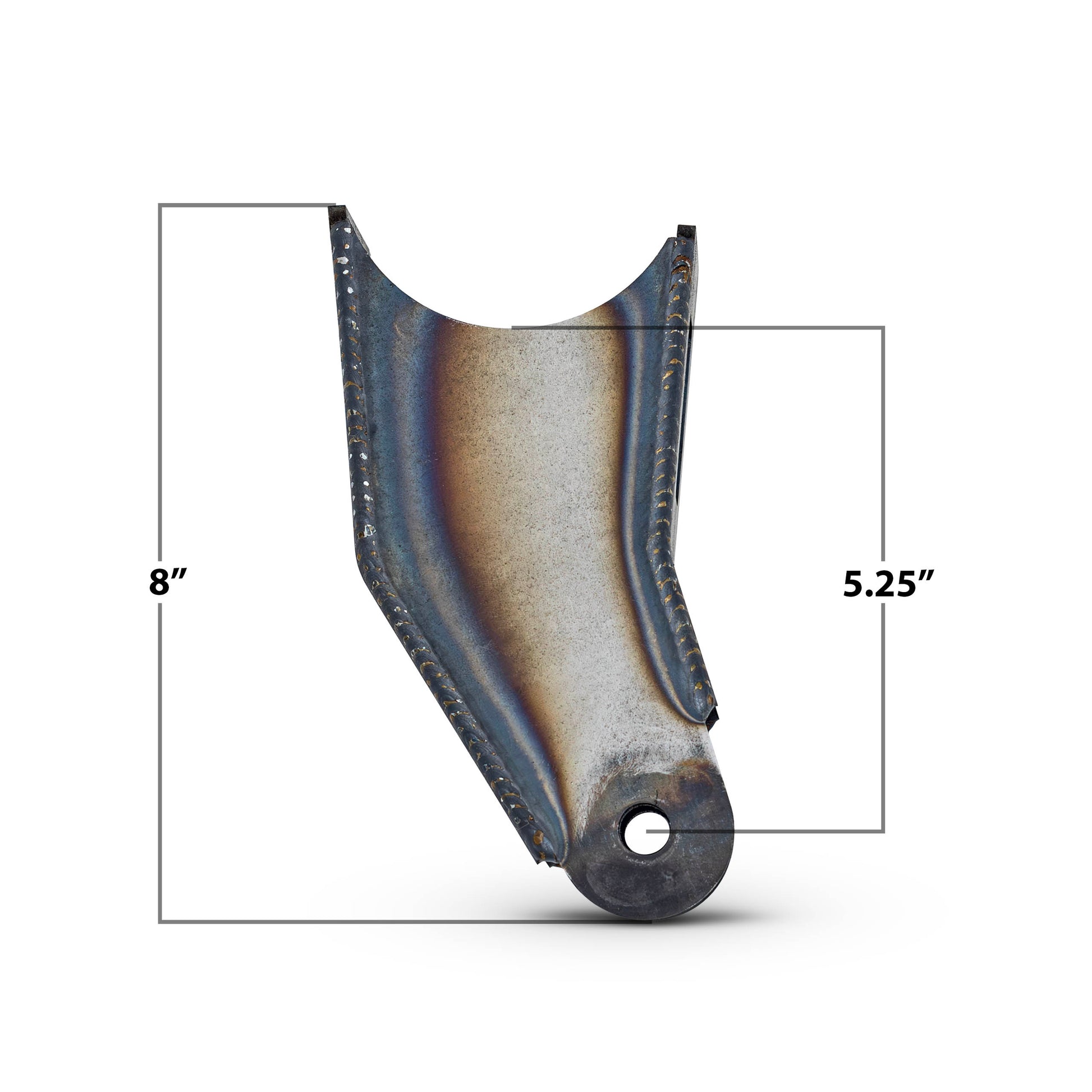

Cut from 1/4" plate steel, these mounts have a radiused bottom, designed to fit flush to the axle housing. This allows you to install at any angle. They weld directly to a 3.250” or 3.5" housings. Distance from the axle tube to the shock mounting holes is 5” and uses an included 1/2x4” bolt to mount the shock. Use these for mounting race style shocks with 1.5” mounting spread.
