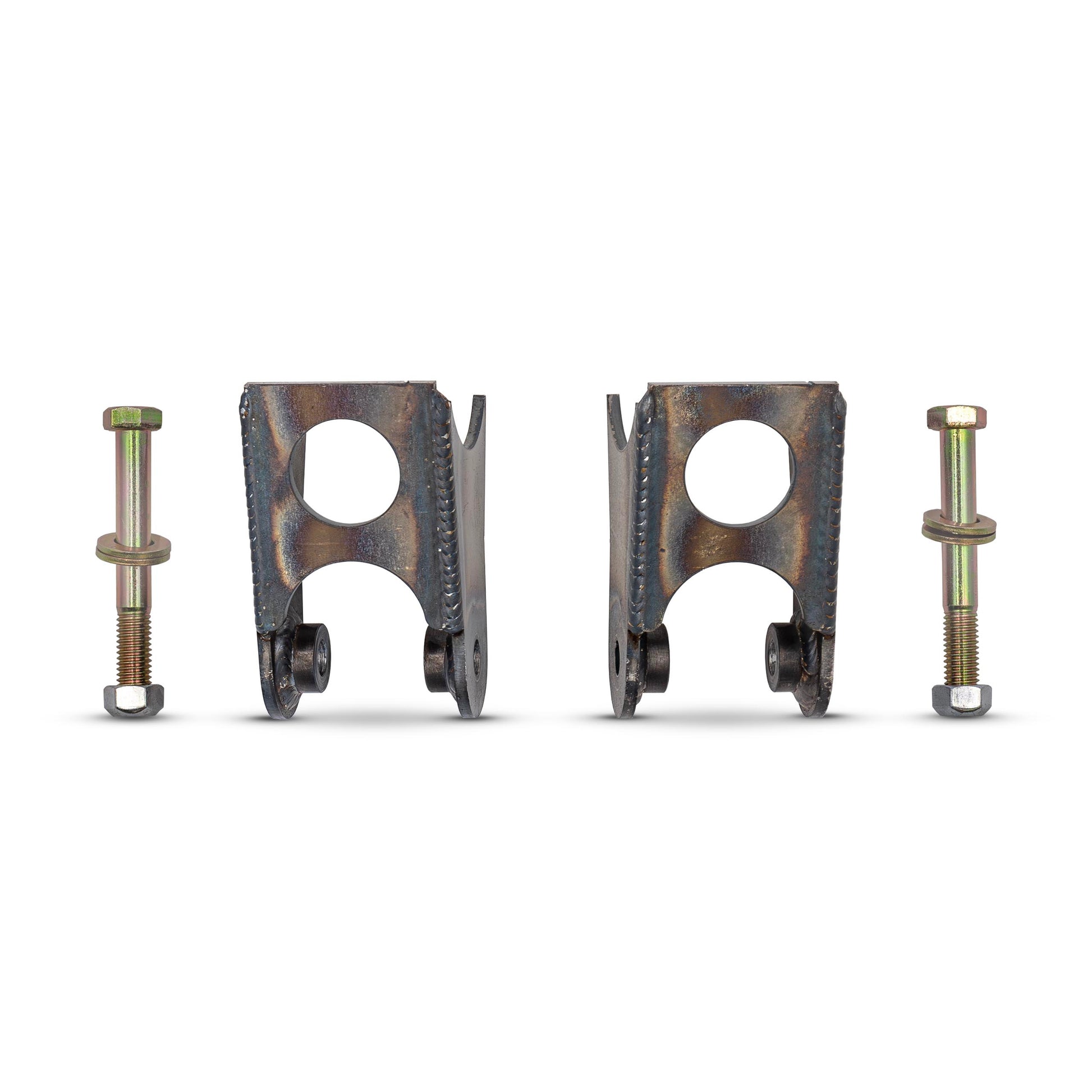

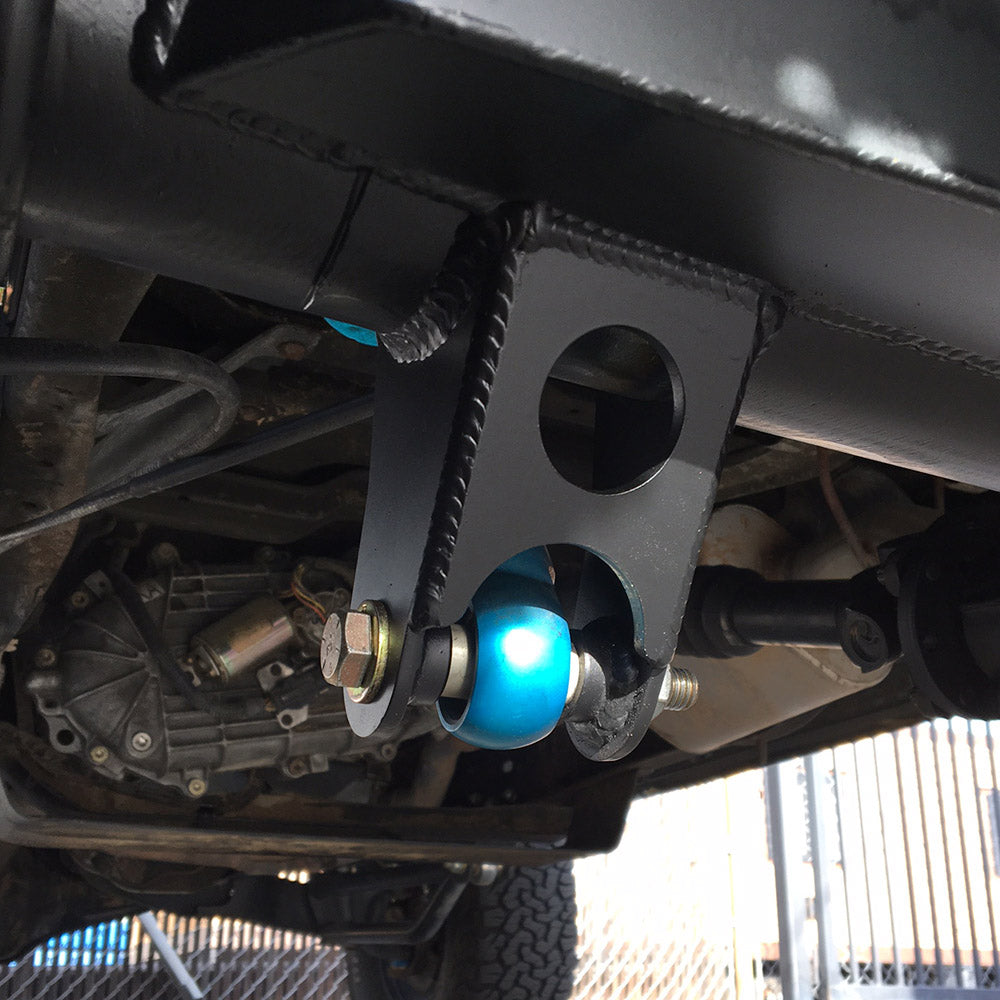

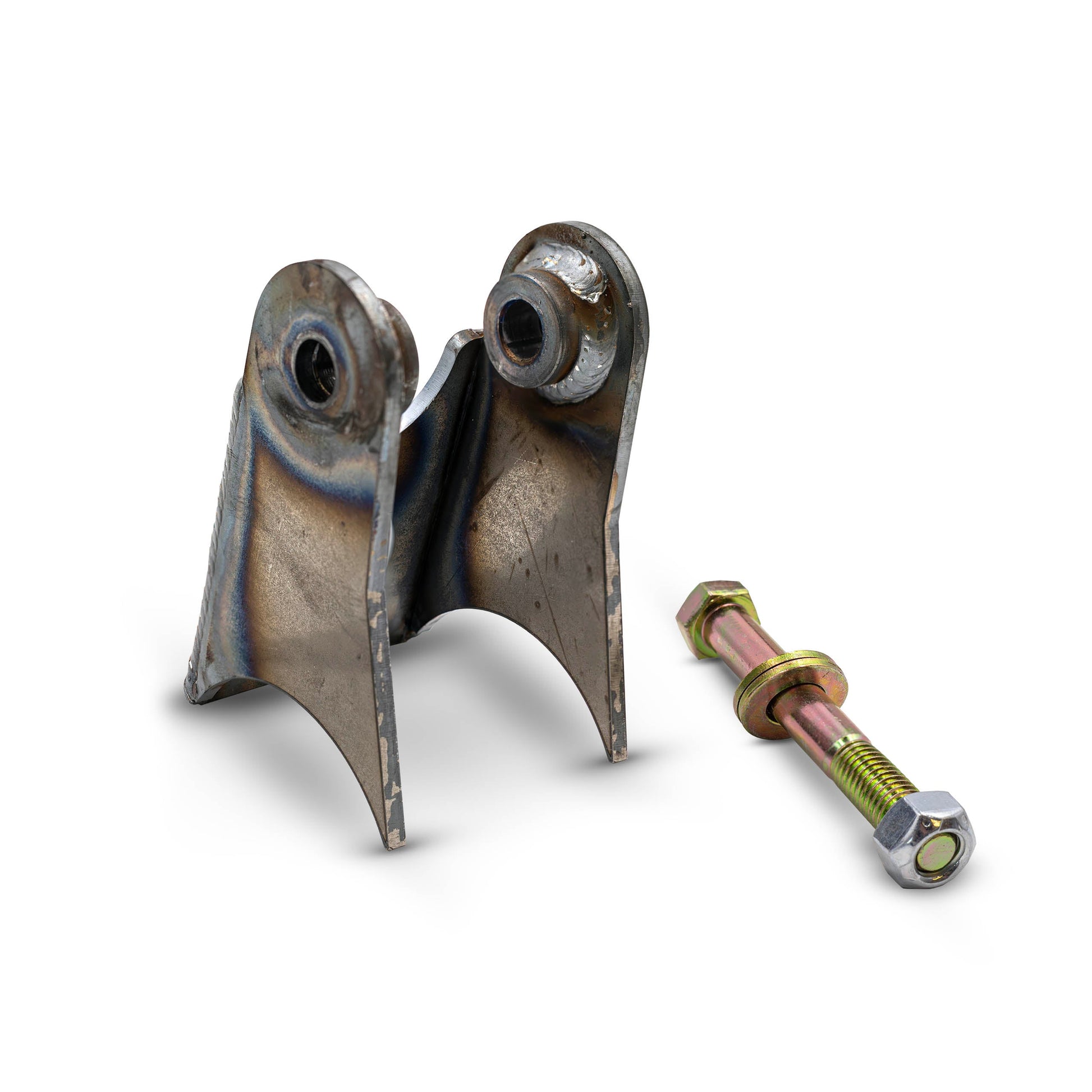

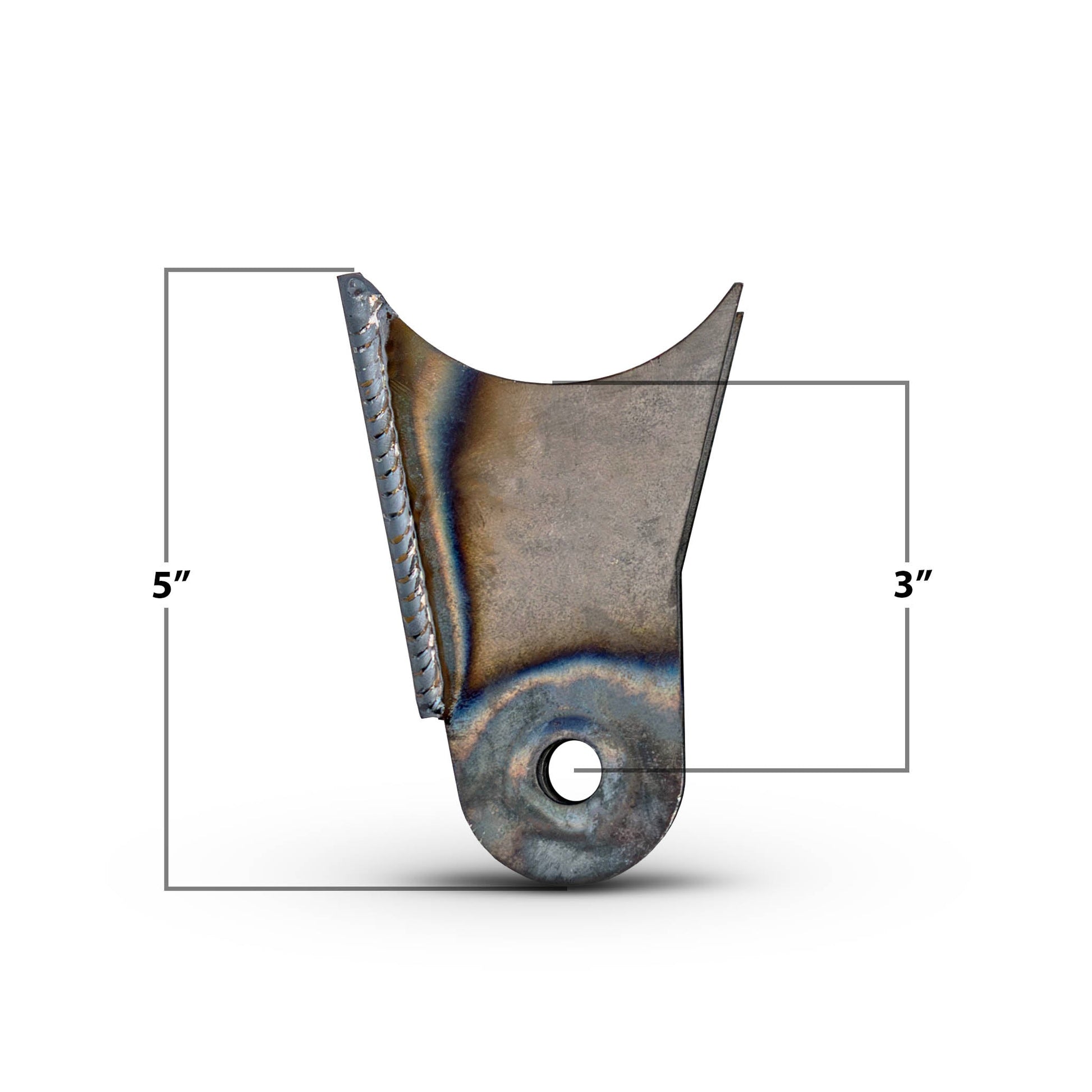

Cut from 3/16" plate steel, these mounts have a radiused bottom, designed to fit flush to the axle housing. This allows you to install at any angle. They weld directly to a 3.250” axle tube but can be modified to fit larger housings. Distance from the axle tube to the shock mounting holes is 3” and uses a 1/2” bolt to attach the shock. Use these for mounting race style shocks with 1.5” mounting spread.
