Premium Dana 35 Radius Arms System (91-94 - First Gen)

Premium Dana 35 Radius Arms System (91-94 - First Gen)

Regular price $2,350.00 USD
Regular price Sale price $2,350.00 USD
Sale Sold out
Shipping calculated at checkout.

The most well built and performing Dana35 radius arm kit on the market. With hundreds of hours of design and development, this is the ultimate radius arm package for your Dana35 equiped Ford Explorer. Aside from the high clearance design, these radius arms have the front and rear pivots of the "arch" almost nuetral at ride height so the front tire will cycle back towards the cab instead of forward then back to drastically improve ride quality and help eliminate the harshness on the intial hits. To further improve vehicle handling, the correct caster angle is built into in the kit to maximize off-road performance and minimize steering feedback while not sacrificing on-road driveability. To top it off, the integrated and removable transmission crossmember (auto and manual) ties the radius arm pivots and chassis together to help eliminate chassis flex.

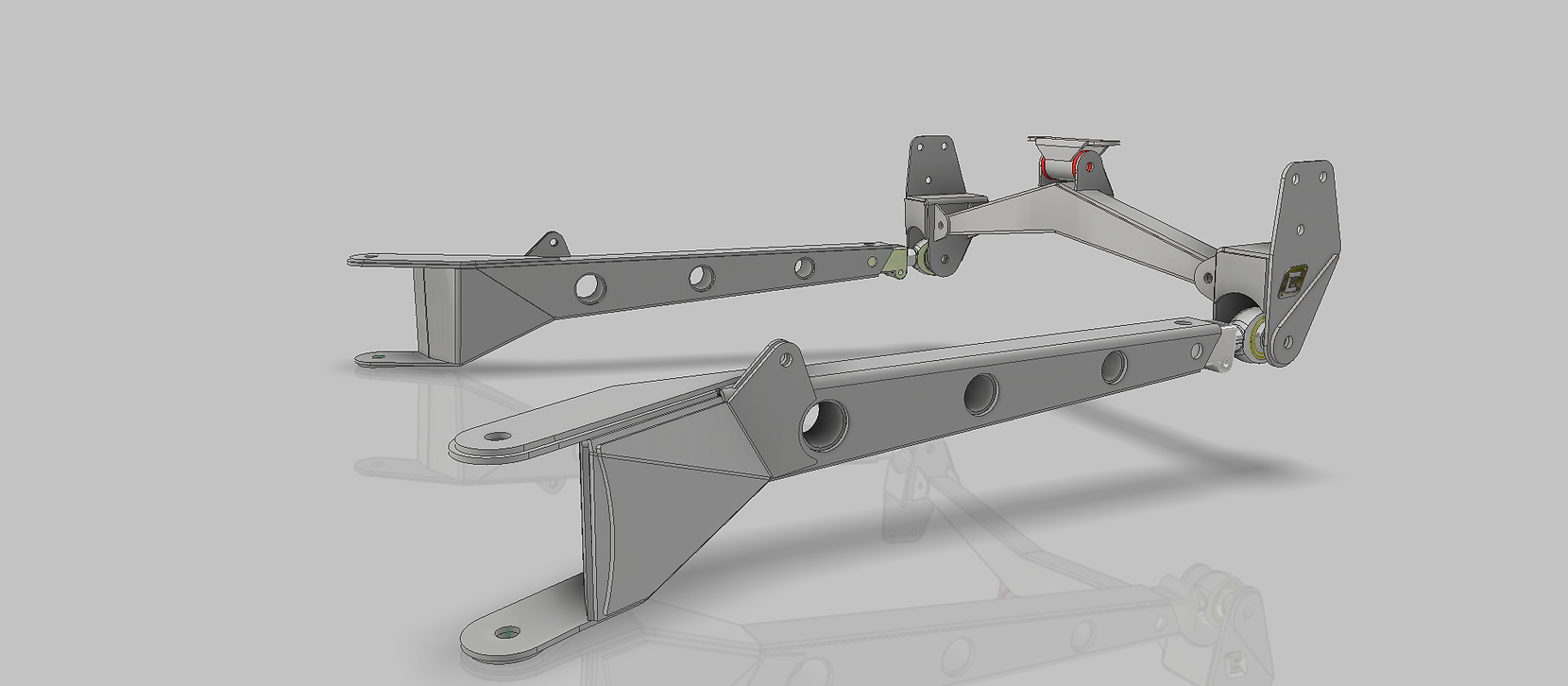

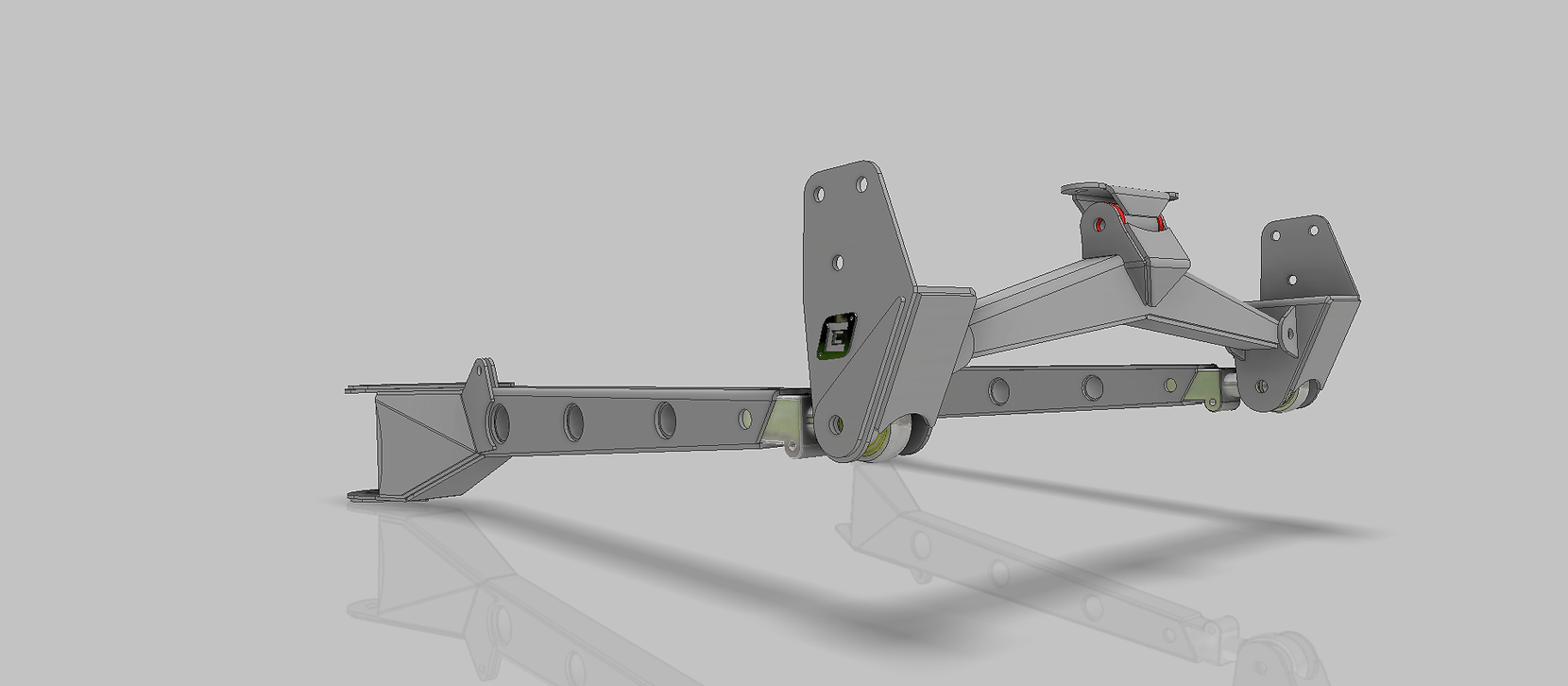

- CAD designed and offroad tested

- Laser cut and CNC press broke .188" steel construction

- Mig welded

- Grade 8 hardware

- Polyurethane transmmission mount bushings

- Double coated powdercoat

- 100% bolt on

- 1.25" FK rod ends

- 17-4 stainless misalignments

- Manufactured by CookCraft Motorsports
